Deos, a Time & Space Partitioned, Multi-core Enabled, RTOS Verified to DO-178C/ED-12C DAL A

Safety Critical RTOS for Avionics Applications requiring DO178C/ED-12C DAL A verification

Deos™, DDC-I’s safety-critical time and space partitioned real-time operating system (RTOS) that has been verified to the guidance of DO-178C/ED-12C Design Assurance Level A (DAL A) for Avionics Applications, supports ARINC 653 APEX, Rate Monotonic Scheduling (RMS), and is targeted at the Future Airborne Capability Environment (FACE™) Safety Extended and Safety Base Profiles. Deos is the first RTOS to receive OSS Conformance Certification for the FACE Technical Standard, Edition 3.1. The Safety Extended Profile, which adds support for TCP/IP communications, multi-process support, and expanded POSIX capability (80 extra functions), is a superset of the functionality required by the Safety Base and Security Profiles.

Deos has been field proven as a safety-critical RTOS since its first verification and audit to DAL A by Transport Canada in 1998, and it has been certified and is flying in 10’s of thousands of aircraft. Since the initial verification, it has continually evolved throughout the last two decades with new processors and features in subsequent baselines, and it has been successfully audited by the world’s various governmental certification authorities (FAA, ENAC, JAA, EASA, CAAC, and others) and Airframe and Avionics Supplier Designated Engineering Representatives (DERs).

Avionics Applications using Deos

Deos has been used to manage resources and hard partition avionics applications on x86, PowerPC, ARM and MIPS microprocessors for a multitude of flight critical functions that require bounded processing, high determinism and high throughput. These functions include: air data computers, air data inertial reference units, cockpit video, displays, flight instrumentation, electronic flight bags, engine management, enhanced ground proximity warning, FADECs, flight controls, flight management systems, maintenance systems, power distribution systems, radios, traffic collision avoidance systems(TCAS), weather radar and many more federated and IMA avionics systems.

Verified to the guidance of DO-178C/ED-12C DAL A

Deos is full featured and has been verified to DO-178C/ED-12C Design Assurance Level A (DAL A) and it addresses the issues of high robustness for avionics and safety critical applications. Deos was built from the ground up with plans and procedures created to the guidance of DO-178 starting with its requirements for its first line of code. In fact, Deos is the only verified time and space partitioned COTS RTOS that has been created using RTCA DO-178 DAL A processes from the very first day of its product development.

Safety Critical Multi-core Operation with Industry Standard ARINC 653 APEX and POSIX APIs

Deos is multi-core enabled through its SafeMC™ Technology giving developers the ability to bound resource contention and safely schedule processes on multiple cores. It provides the toolset for addressing the objectives of the CAST-32A Position Paper. Deos includes ARINC 653, Rate Monotonic, and POSIX schedulers and associated standards based interfaces for maximum portability of code, and it offers several unique fundamental and patented architectural advantages over other competing DO-178C verified safety critical RTOS’s. The result is the best performance, lowest risk, easiest to certify, and lowest cost time & space partitioned COTS RTOS for airborne avionics and safety critical applications on the market today.

Security Capabilities for Avionics Systems

Deos’ time and space partitioning, and explicit resource allocation enforcement inherently support isolation of computing and I/O resources, leading to a secure system design. In addition, its modular boot code, hardware abstraction layer, and the availability of application program interfaces to platform hardware resources enables Deos to deliver a software foundation to easily integrate a variety of security capabilities into the avionics device. Since system security requirements and hardware support for security functions varies on each customers target hardware platforms, Deos is integrated with a number of 3rd party security software packages (i.e., encryption, secure networking, key management, etc.). Those packages along with a DO-178C/ED-12C verified safe and security enabled BSP (through DDC-I services, 3rd party, or customer developed) a Deos based system may be designed to meet the security requirements of most any avionics program.

Includes support for:

Linux and Windows XP, 7, 8 & 10 host development environments
x86, PowerPC, ARM and MIPS single- and multi-core processors
C, C++ (subset), Ada95 compilers
Rate Monotonic, ARINC 653 and POSIX scheduling and application interfaces for maximal code portability

Popular avionics standards (DO-178C, ED-12C, ARINC, POSIX) and other optional modules:

DO-178C/ED-12C Verification Evidence (Artifacts) to Design Assurance Level A (DAL A)
ARINC 653 (ARINC Specification 653 Part 1 )
POSIX 1003.1 subset targeted at FACE Safety Extended Profile
ARINC 653 p4 (ARINC Specification 653 Part 4)
ARINC 615 (ARINC Specification 615 Target Data Loader)
ARINC 664 (ARINC Specification 664 Data Bus)
File System (ARINC Specification 653 Part 2)
Certifiable Fast File System – Data Streaming File System
AFDX – Avionics Full-Duplex Switched Ethernet

Other features

Trusted & Field Proven
- Verified and successfully audited to DO-178, Design Assurance Level (DAL) A since 1998
  - Certified and flying on hundreds of aircraft systems world-wide
- Best in Class Performance & Technical Advantages
  - Rate Monotonic Scheduling (RMS), ARINC653 and POSIX scheduling with patented slack scheduling enables full processor utilization
  - SafeMC™ Technology (including patented cache partitioning and safe scheduling) enable safety critical multi-core applications
  - Compiler certification independence enables state-of-the-art compilers with optimization & in-lining ‘on’
  - Fastest context switching available of any time & space COTS RTOS
- Advanced Feature-set Ensures… Easy Start and Lower Risk/Cost to Certify
  - Developed using COTS hardware, and design reference boards
  - Industry standard Ethernet & TCP/IP for development & in-flight use (supports both partitioned TCP/IP stacks, and multihoming)
  - Abstraction layers significantly improve BSP creation, verification & certification efforts
  - Binary level modularity reduces certification risk, time, and effort
- ARINC Specification 653 Part 1 (Optional Module)
  - Delivers the standard avionics interfaces for enhanced portability, and allows designers to take advantage of the advanced features of Deos.
- ARINC Specification 653 Part 4 (Optional Module)
  - Delivers a streamlined subset of the standard avionics interfaces for less complex systems and the value added features of Deos.
- POSIX Subset (Optional Module)
  - Subset of POSIX as required to support the FACE Safety Extended Profile
  - Delivers portability of open-source applications running in Deos partitions.
- Binary Coverage Tool Resolves Source-to-Object Gaps Left Behind by MCDC
- Binary Modularity Provides a ‘Plug-and-Play’ for the System Design & Integration
- XML Configuration Tools & Verification Tools Generate Verifiable Configuration Profiles
- User Guides Direct the Integration, Use, Testing, and Verification of Deos Binary Modules
  - I/O Infrastructure (IOI) provides data conversion & I/O handling (e.g., queued, blackboard, FIFO, etc.), reducing application code
  - Networking – AFDX, UDP & TCP/IP
- Lowest Cost of Ownership
  - Progressive, industry-leading, product license pricing models
  - Deos BSP creation & verification costs/schedules are a fraction of any other time & space COTS RTOS requiring aircraft certification for flight.
  - Deos’s unique hybrid architecture makes it easy for our customers to develop ARINC 653 applications for Deos, or to migrate existing ARINC 653 applications to Deos.
  - DDC-I’s open and competitive services model enables customers and third parties to create their own Deos BSP, drivers, & other Deos components.
  - Portability – Binary objects promote plug & play reuse, with minimal re-verification effort.
  - High-level OS facilities enable applications to migrate with minimal change (e.g., IOI resolves different I/O interfaces types).
  - Ecosystem of third party hardware, software, and services

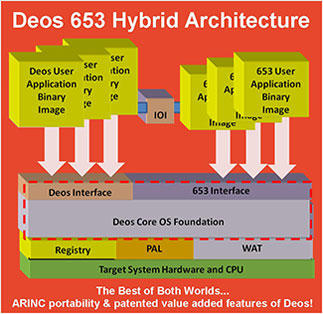

- Unique Hybrid Architecture
  - Combines RMS, 653 and POSIX scheduling models & Application Programming Interfaces (API’s) in a powerful & versatile system for software certification.

Architecture allows the best of both worlds with the portability of the popular avionics standards, and the value added features of Deos, such as slack scheduling, it’s modular architecture, application space device drivers and more.
